Akım Hydrometry

Pluviograph Rain Gauge

For the area of one meter square, it calculates the amount of rainfall and records it in the memory.


Information
Technicial Specifications
Gallery
Documents

Rain gauges using Tipping Bucket principle with integral data logger or pulse output.

High-resolution electronic tipping bucket system (0,1 mm)

Instruments suitable with World Meteorological Organization standards (WMO)

Bucket size; 0,1 mm or 0,2 mm (adjustable)

Easy to service with low maintenance requirement

Suitable for solid precipilation (e.g. snow, hail, freezing rain, grain)

“flood warning alarms” can be sent to; cellular telephones and PC (Auto)

Long term stable calibration

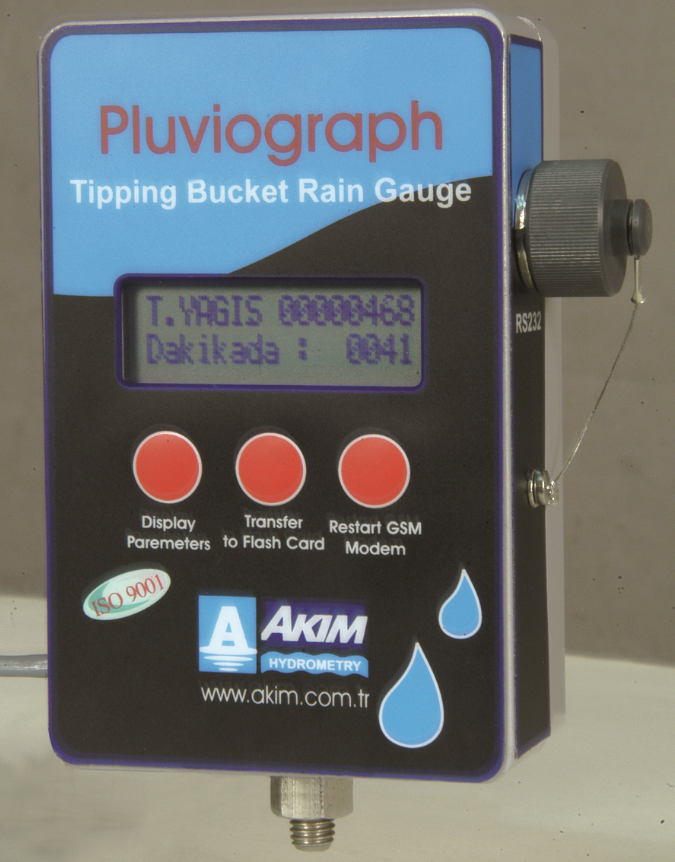

2- lines dot matrix LCD display. Total 32 characters

2 MByte Memory (Data Flash Memory)

Battery life time > 10 years

Windows data management software

3 years warranty


Function

Automatic logging of rainfall, unlimited

rainfall capacity, highly accurate rain

gauge with impulse output.

The systems uses the latest data logger

series to record rainfall using a precision

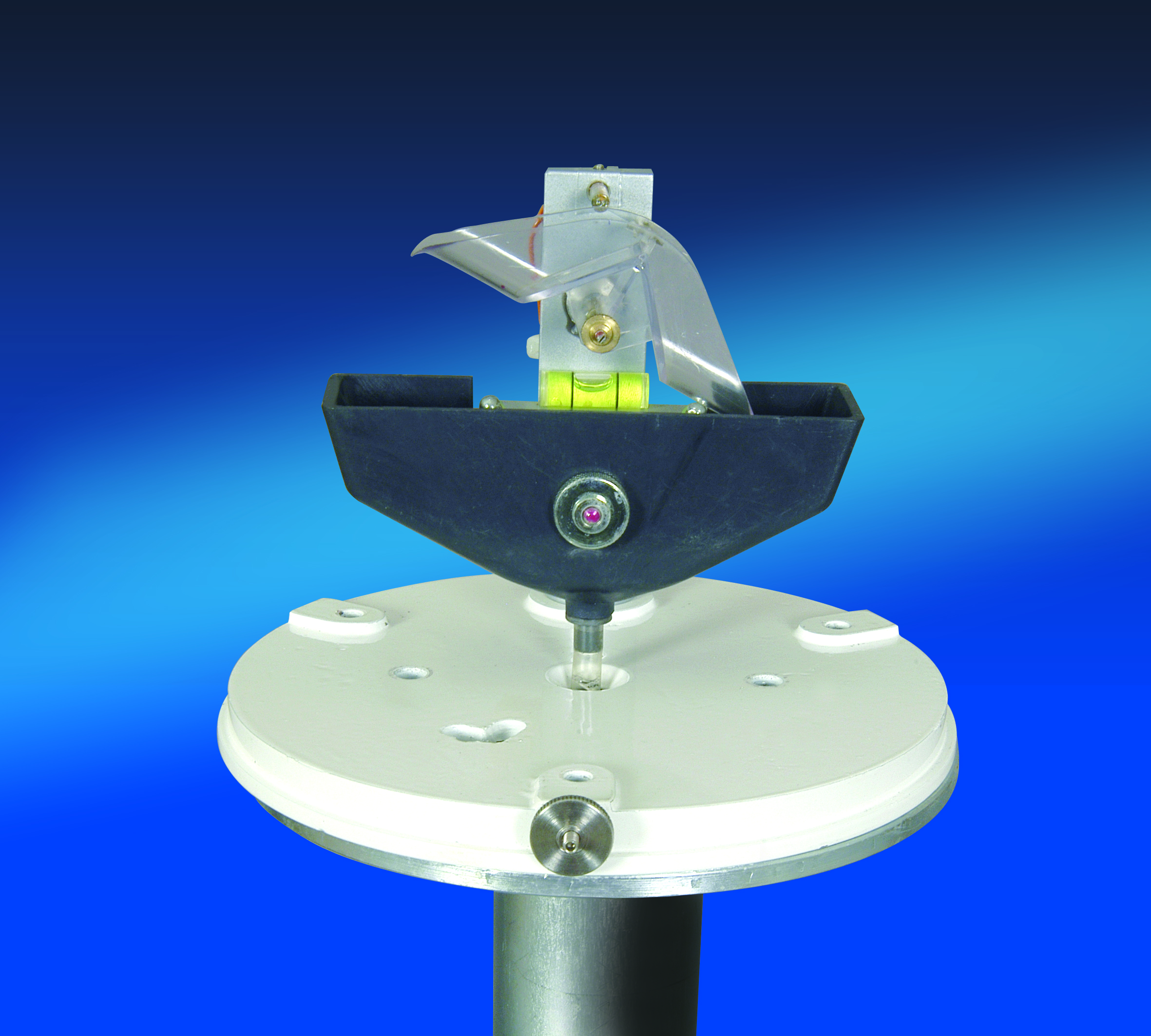

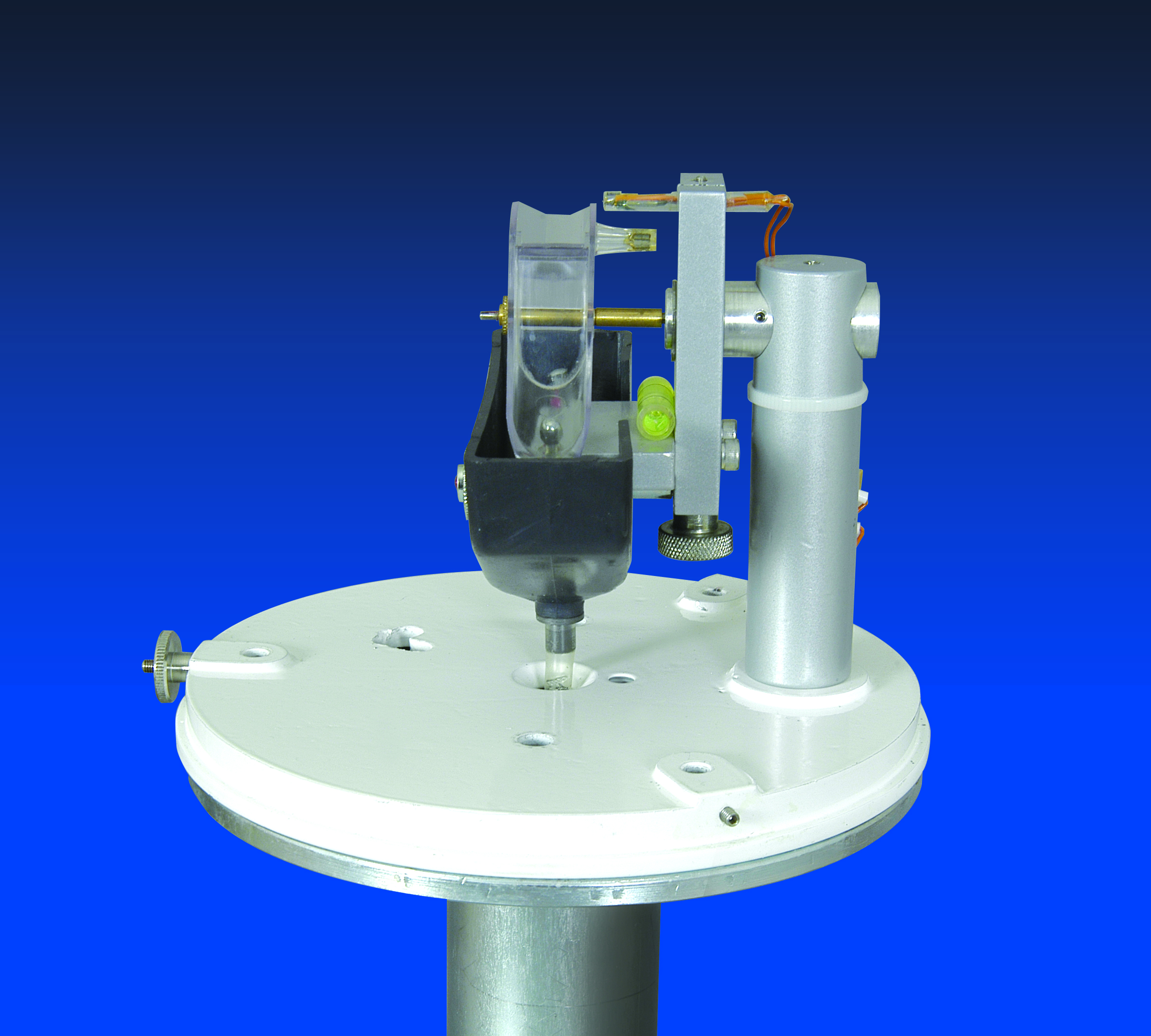

tipping bucket rain gauge. A divided

bucket pivoted at the centre tips when a

predetermined amount of rain water is collected

at one side of bucket. The tipping

action magnetically closes a reed switch

which sends a pulse to the logger. The

other side of the bucket then will fill up

and the process is repeated. A choice of

either 0,1 mm or 0,2 mm per tip sensitivity

is available.

The system is supplied with an RS-232

cable and evaluation software compatible

to use with PC, Lap-Top, Data Flash

Card, RF Modem and GSM/GPRS Data

Modem device, complete with rain gauge,

datalogger, battery, RS-232 cable and

Windows data management software



Technical Details

Collecting Area  :  200 cm2


Tipping Bucket Made  :  of plastic material (ABS)


Resolution  :  1 impulse, 0,1 mm rainfall


Mechanism  :  Magnetic reed switch


Output  :  Reed contact impulse (potential free)


Bucket Size  :  0,1 mm or 0,2 mm (adjustable)


Material  :  Aliminium or Copper


Max. breaking capacity  :  3 watts


Max. switching capacity  :  150 V, 0,25 A

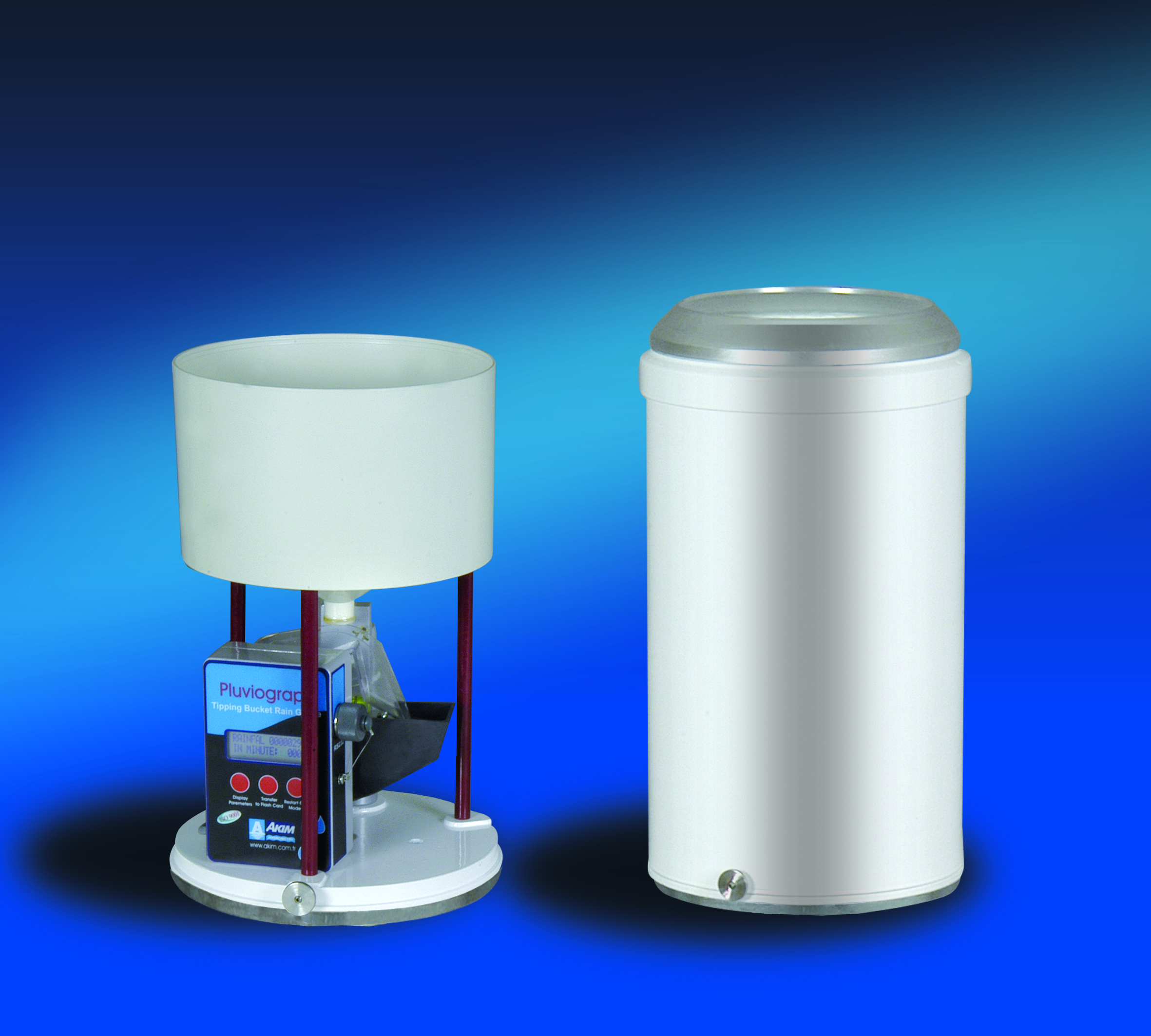

Dimensions


Height  : 355 mm, diameter:205 mm


Weight  :  ~3,7 kg
