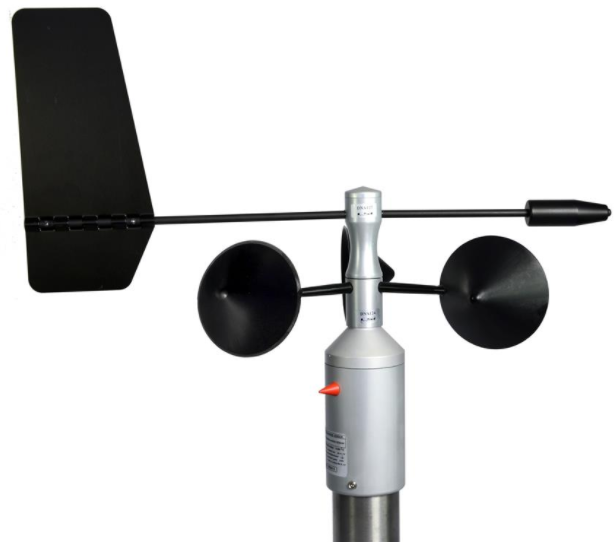

Wind Direction and Speed Mechanical Measuring Station

Calculating and Recording with Mechanical Sensors on Wind Direction and Speed.


Information
Technicial Specifications
Gallery

Thanks to 2 separate sensors, which have wind speed and direction,  the data recorder log the datas at the desired time intervals.

It is used in meteorological stations, WPPs and other areas.

The wind direction is shown as a degree value between 0 and 360 degrees.

Displays wind speed in m / s.


  Wind Direction Wind Speed
Working PrincipleN.32 step optoelectronic diskN.32 step optoelectronic disk
Threshold 0,25 m/s 0,3 m/s
Accuracy 1% 0÷3 m/s=1,5%; >3 m/s= 1%
Measuring range0 - 360 °
Resolution
 0,07 m/s
Operative temperature -35 ... + 70 ° C (without ice) -35 ... + 70 ° C (without ice)
Operative damage limit  75 m/s
Materiel Anodized aluminum  Anodized aluminum
Mounting
ø 48 - 50 mm
 ø 48 - 50 mm
Power Supply10 - 14 V DC 10 - 14 V DC
